Home » Products » Metal Bearings» Self-Lubricating Bearings » #50V Solid Lubricated Bronze Sliding Blocks

#50V

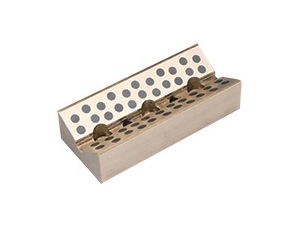

Solid Lubricated Bronze Sliding Blocks

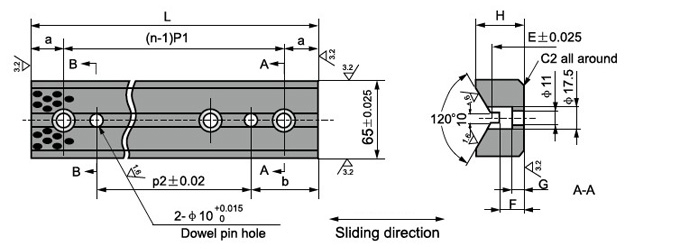

Main Specifications

Model	L	H	E	F	G	a	P1	Bolt n	b	p2
#50V-C-100	100	35	18	15	8	20	60	2	40	20
#50V-C-150	150	"	"	"	"	25	50	3	50	50
#50V-C-200	200	"	"	"	"	"	"	4	"	100
#50V-C-250	250	"	"	"	"	"	"	5	"	150
#50V-C-300	300	"	"	"	"	"	"	6	"	200

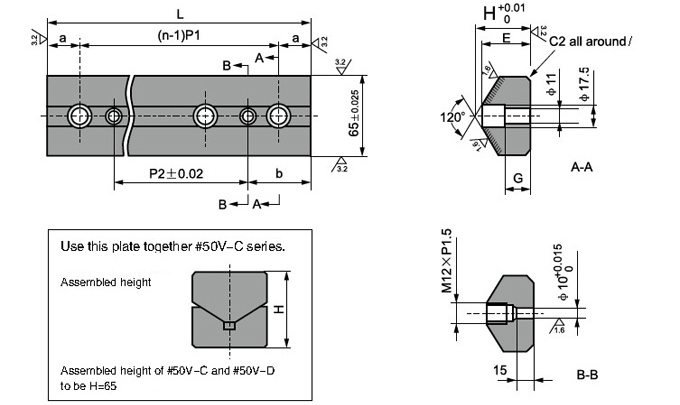

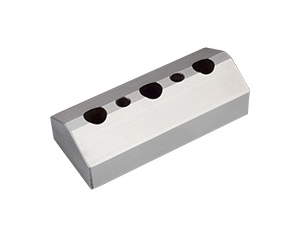

Main Specifications

Model	L	H	E	G	a	P1	Bolt n	b	p2
#50V-D-100	100	47	44	20	20	60	2	40	20
#50V-D-150	150	"	"	"	25	50	3	50	50
#50V-D-200	200	"	"	"	"	"	4	"	100
#50V-D-250	250	"	"	"	"	"	5	"	150
#50V-D-300	300	"	"	"	"	"	6	"	200

Related Names
Guide Plate With Solid Lubricant | Cam Bottom Guide Plate | Brass Block

Technical Parameters

Material Technical Chemical	#50SP1-SL1 CuZn25Al6 FeMn3	#50SP1-SL4 CuZn25Al6 FeMn3	#50SP5-SL1 CuZn25Al6 FeMn3	#50HP CuZn25Al6 FeMn3	#50AB-SL1 CuAl10Ni	#50AB-SL4 CuAl10Ni	#50B CuSn12
Cu	65	65	65	65	80	80	88
Sn							12
Pb	25	25	25	25
Zn	6	6	6	6
Ni					5	5
Al					10	10
Fe					5	5
Mn	4	4	4	4
Hardness HB	>180	>180	>235	>250	>150	>150	>80
Tensile strength N/mm²	>550	>550	>750	>785	>200	>200	>200
Elongation ％	>12		>12	>10	>10	>8	>8
Coefficient of expansion	1.9×10-5/℃		1.9×10-5/℃	1.9×10-5/℃	1.6×10-5/℃	1.8×10-5/℃	1.8×10-5/℃
Limited Temp ℃	300~400		300~400	300~400	400	400	400
Max load N/mm²	80		100	118	50	70	70
MAX SPEED M/min	15		15	10	20	10	10
Max PV N/mm2*m/s	200		200	200	200	200	200
Compression set amount 400 N/mm²	<0.01		<0.01	<0.05	<0.04	<0.05	<0.05
