Home » Products » Metal Bearings» SLiding bearing » DNB-#200F Flanged Bushes

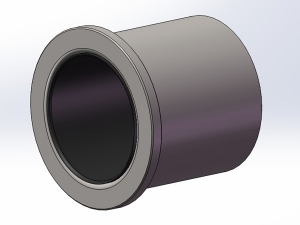

DNB-#200F

Flanged Bushes

1. The DNB-#200F flanged bushes supplied by our company are available in various sizes. This product is a kind of self-lubricating, oilless flanged bushing.

2. Please select an ideal part number of the mechanical bushing according to the inner diameter, outer diameter, and the length.

3. For example, the ordering code of the flanged bushes is DNB-#200F-2030 under condition of 20mm inner diameter and 30mm length.

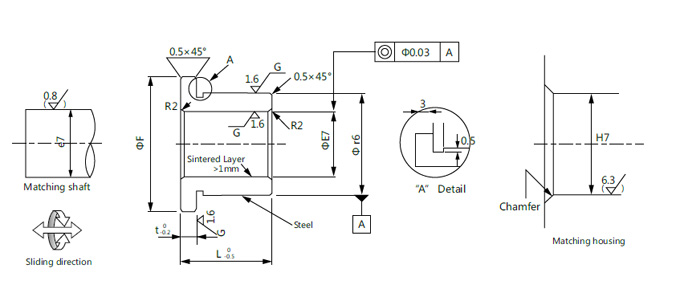

Technical Parameters (Unit: mm)

Parts No. Ød ØD ØF t L
#200F-2030 20 +0.061
+0.040		 30 +0.041
+0.028		 　 35 7 0 -0.2 30 0 > -0.5
#200F-2040 20 " 30 " 　 35 7 " 40 "
#200F-3030 30 +0.075
+0.050		 40 +0.050
+0.034		 　 45 7 " 30 "
#200F-3060 30 " 40 " 　 45 7 " 60 "
#200F-4040 40 " 50 +0.060
+0.041		 　 45 10 " 40 "
#200F-4080 40 " 50 " 　 55 10 " 80 "
#200F-5050 50 +0.090
+0.060		 62 " 　 67 10 " 50 "
#200F-50100 50 " 62 " 　 67 10 " 100 "
#200F--6060 60 " 74 +0.062
+0.043		 　 79 10 " 60 "
#200F-60120 60 " 74 " 　 79 10 " 120 "
#200F-8080 80 +0.107
+0.072		 100 +0.076
+0.054		 　 105 10 " 80 "
#200F-100100 100 " 120 +0.088
+0.063		 　 125 10 " 100 "
#200F-120100 120 +0.125
+0.085		 140 +0.090
+0.065		 　 145 10 " 100 "
#200F-140100 140 " 160 +0.093
+0.068		 　 165 10 " 100 "
#200F-160120 160 " 180 +0.106
+0.077		 　 185 10 " 120 "
