5mm Thick Wear Plate

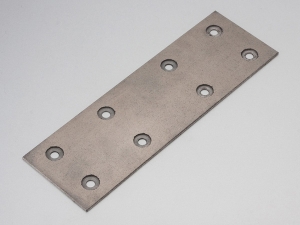

The DNB-#200P5 5mm thick wear plate features low abrasion, high carrying capacity, easy assembly, and superb interchangeability. Oil lubrication is not needed by the abrasion resistant plate. This product is ideal for use in high-speed operations, and it can enormously reduce the drive power. It is a part of various engineering machines or general equipment.
Please select part numbers on basis of appropriate thickness, width and length. Here is an example. The ordering code is DNB-#200P10-2875 under conditions of 10mm thickness, 28mm width, and 75mm length.

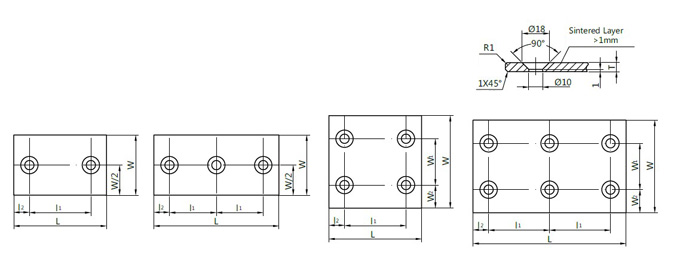

Technical Data (Unit: mm)
| Parts No. | Width | Length | Thickness | Mounting holes Pitch | Number of Screw holes | ||||||
| W | Tolerance | L | Tolerance | T | Tolerance | W1 | W2 | L1 | L2 | ||
| 22 | 0-0.3 | 50 | 0-0.3 | 5 | ±0.015 | – | – | 20 | 15 | 2 | |
| 22 | " | 75 | " | – | – | 45 | 15 | 2 | |||
| 22 | " | 100 | " | – | – | 70 | 15 | 2 | |||
| 22 | " | 150 | " | – | – | 60 | 15 | 3 | |||
| 28 | " | 50 | " | – | – | 20 | 15 | 2 | |||
| 28 | " | 75 | " | – | – | 45 | 15 | 2 | |||
| 28 | " | 100 | " | – | – | 70 | 15 | 2 | |||
| 28 | " | 150 | " | – | – | 60 | 15 | 3 | |||
| 38 | " | 50 | " | – | – | 20 | 15 | 2 | |||
| 38 | " | 75 | " | – | – | 45 | 15 | 2 | |||
| 38 | " | 100 | " | – | – | 70 | 15 | 2 | |||
| 38 | " | 150 | " | – | – | 60 | 15 | 3 | |||
| 48 | " | 50 | " | – | – | 20 | 15 | 2 | |||
| 48 | " | 75 | " | – | – | 45 | 15 | 2 | |||
| 48 | " | 100 | " | – | – | 70 | 15 | 2 | |||
| 48 | " | 150 | " | – | – | 60 | 15 | 3 | |||
| 75 | " | 75 | " | 45 | 15 | 45 | 15 | 4 | |||
| 75 | " | 100 | " | 45 | 15 | 70 | 15 | 4 | |||
| 75 | " | 125 | " | 45 | 15 | 95 | 15 | 4 | |||
| 75 | " | 150 | " | 45 | 15 | 60 | 15 | 6 | |||
| 100 | " | 100 | " | 75 | 15 | 70 | 15 | 4 | |||
| 100 | " | 125 | " | 75 | 15 | 95 | 15 | 4 | |||
| 100 | " | 150 | " | 75 | 15 | 60 | 15 | 6 | |||
