#50AB-SL1

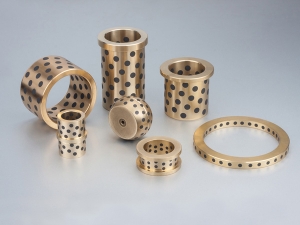

Solid Lubricated Aluminum Bronze Bearing

The #50AB-SL1 solid lubricated aluminum bronze bearing is basically made from copper alloy with HB>150. It is a kind of oil-less bearing, and drilled holes are well distributed on its working surface. The bearing with solid lubricant gives extremely strong resistance to heat and corrosion.

Technical Parameters

Material


   Technical
   Chemical

#50SP1-SL1
CuZn25Al6
FeMn3
#50SP1-SL4
CuZn25Al6
FeMn3
#50SP5-SL1
CuZn25Al6
FeMn3
#50HP
CuZn25Al6
FeMn3
#50AB-SL1
CuAl10Ni
#50AB-SL4
CuAl10Ni
#50B
CuSn12
Cu 65 65 65 65 80 80 88
Sn             12
Pb 25 25 25 25
Zn 6 6 6 6
Ni         5 5
Al         10 10
Fe         5 5
Mn 4 4 4 4
Hardness
HB
>180 >180 >235 >250 >150 >150 >80
Tensile strength
N/mm²
>550 >550 >750 >785 >200 >200 >200
Elongation

>12   >12 >10 >10 >8 >8
Coefficient
of expansion
1.9×10-5/℃   1.9×10-5/℃ 1.9×10-5/℃ 1.6×10-5/℃ 1.8×10-5/℃ 1.8×10-5/℃
Limited Temp

300~400   300~400 300~400 400 400 400
Max load
N/mm²
80   100 118 50 70 70
MAX SPEED
M/min
15   15 10 20 10 10
Max PV
N/mm2*m/s
200   200 200 200 200 200
Compression set amount
400 N/mm²
<0.01   <0.01 <0.05 <0.04 <0.05 <0.05
