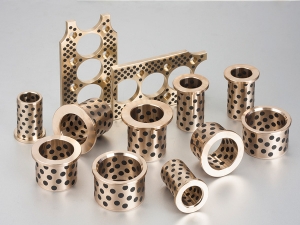

DeutschSolid Lubricated Copper Bearing
1. The #50HP solid lubricated copper bearing is based on high-hardness copper alloy with HB>245. It is a kind of solid lubricant inlaid non-oil bearing. A certain proportion of holes are drilled in the wear-resistant surface.
2. In view of mechanical strength and hardness, this product is superior to both #50SP1 and #50SP5. With ultra high carrying capacity, it is suitable for those with low speed, high precision, and no impact.
3. In addition, the #50HP solid lubricated copper bearing gives the best wear-resisting property when compared to #50SP1 and #50SP5. It is an ideal wear-resistant bearing for injection molding machines and so on.
4. Please choose a suitable product among #50SP1, #50SP5, and #50HP in accordance with specific working conditions.
Technical Parameters
Material |
#50SP1-SL1 CuZn25Al6 FeMn3 |
#50SP1-SL4 CuZn25Al6 FeMn3 |
#50SP5-SL1 CuZn25Al6 FeMn3 |
#50HP CuZn25Al6 FeMn3 |
#50AB-SL1 CuAl10Ni |
#50AB-SL4 CuAl10Ni |
#50B CuSn12 |
| Cu | 65 | 65 | 65 | 65 | 80 | 80 | 88 |
| Sn | 12 | ||||||
| Pb | 25 | 25 | 25 | 25 | |||
| Zn | 6 | 6 | 6 | 6 | |||
| Ni | 5 | 5 | |||||
| Al | 10 | 10 | |||||
| Fe | 5 | 5 | |||||
| Mn | 4 | 4 | 4 | 4 | |||
| Hardness HB |
>180 | >180 | >235 | >250 | >150 | >150 | >80 |
| Tensile strength N/mm² |
>550 | >550 | >750 | >785 | >200 | >200 | >200 |
| Elongation ％ |
>12 | >12 | >10 | >10 | >8 | >8 | |
| Coefficient of expansion |
1.9×10-5/℃ | 1.9×10-5/℃ | 1.9×10-5/℃ | 1.6×10-5/℃ | 1.8×10-5/℃ | 1.8×10-5/℃ | |
| Limited Temp ℃ |
300~400 | 300~400 | 300~400 | 400 | 400 | 400 | |
| Max load N/mm² |
80 | 100 | 118 | 50 | 70 | 70 | |
| MAX SPEED M/min |
15 | 15 | 10 | 20 | 10 | 10 | |
| Max PV N/mm2*m/s |
200 | 200 | 200 | 200 | 200 | 200 | |
| Compression set amount 400 N/mm² |
<0.01 | <0.01 | <0.05 | <0.04 | <0.05 | <0.05 |
