ISO3547 (DIN1494) Wrapped Bronze Flanged Bushing

1. The ISO3547 (DIN1494) wrapped bronze flanged bushing adopts specially-formulated high-density copper alloy as its base material.

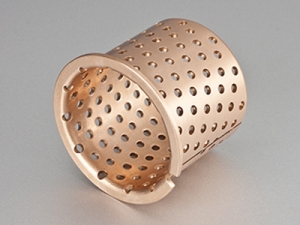

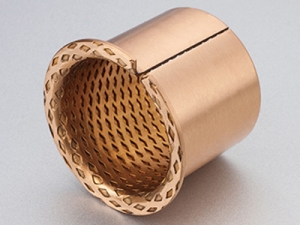

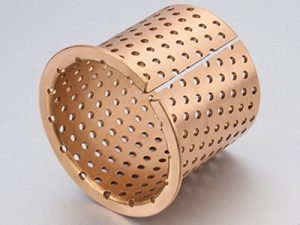

2. Surface of the flanged bush can be designed with diamond-shaped or hemispherical oil pockets and oil grooves in line with the requirements of users.

3. Striking advantages of this product include the superb fatigue strength, strong corrosion resistance, high wear resistance, and the long service life, etc.

4. The wrapped bronze flanged bushing can replace conventional cast copper set to reduce mechanical volume and cost.

5. This series of wrapped bronze flanged bushing has been widely applied in high-load and low-speed industries to act as the crane accessory, construction machinery part, agricultural machinery bushing, and more.

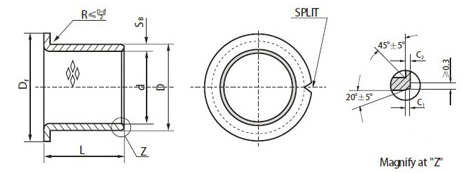

Technical Data (Unit: mm)

Parts No.	Shaft Diameter dj	Housing øDH	Flange øD_F	Press In Housing I.D. ød	Height L	O.D. øD
WB-F2015	20f7 ^{-0.020 -0.041}	23H7 ^{+0.021 0}	30±0.5	20^{+0.052 0}	15±0.25	23 ^{+0.075 +0.035}
WB-F2020	"	"	"	"	20±0.25	"
WB-F2515	25f7 ^{-0.020 -0.041}	28H7 ^{+0.021 0}	35±0.5	25^{+0.052 0}	15±0.25	28 ^{+0.075 +0.035}
WB-F2520	"	"	"	"	20±0.25	"
WB-F2525	"	"	"	"	25±0.25	"
WB-F3015	30f7 ^{-0.020 -0.041}	34H7 ^{+0.025 0}	45±0.5	30^{+0.052 0}	15±0.25	34 ^{+0.085 +0.045}
WB-F3020	"	"	"	"	20±0.25	"
WB-F3030	"	"	"	"	30±0.25	"
WB-F3520	35f7 ^{-0.025 -0.050}	39H7 ^{+0.025 0}	50±0.5	35^{+0.062 0}	20±0.25	39 ^{+0.085 +0.045}
WB-F3525	"	"	"	"	25±0.25	"
WB-F3530	"	"	"	"	30±0.25	"
WB-F4025	40f7 ^{-0.025 -0.050}	44H7 ^{+0.025 0}	55±0.5	40^{+0.062 0}	25±0.25	44 ^{+0.085 +0.045}
WB-F4030	"	"	"	"	30±0.25	"
WB-F4530	45f7 ^{-0.025 -0.050}	50H7 ^{+0.025 0}	60±0.5	45^{+0.062 0}	30±0.25	50 ^{+0.085 +0.045}
WB-F4545	"	"	"	"	45±0.25	"
WB-F4560	"	"	"	"	60±0.25	"
WB-F5035	50f7 ^{-0.025 -0.050}	55H7 ^{+0.030 0}	65±0.5	50^{+0.062 0}	35±0.25	55 ^{+0.100 +0.055}
WB-F5040	"	"	"	"	40±0.25	"
WB-F5050	"	"	"	"	50±0.25	"
WB-F5530	55f7 ^{-0.030 -0.060}	60H7 ^{+0.030 0}	70±0.5	55^{+0.074 0}	30±0.25	60 ^{+0.100 +0.055}
WB-F5550	"	"	"	"	50±0.25	"
WB-F6030	60f7 ^{-0.030 -0.060}	65H7 ^{+0.030 0}	75±0.5	60^{+0.074 0}	30±0.25	65 ^{+0.100 +0.055}
WB-F6050	"	"	"	"	50±0.25	"
WB-F6060	"	"	"	"	60±0.25	"
WB-F6530	65f7 ^{-0.030 -0.060}	70H7 ^{+0.030 0}	80±0.5	65^{+0.074 0}	30±0.25	70 ^{+0.100 +0.055}
WB-F6540	"	"	"	"	40±0.25	"
WB-F6560	"	"	"	"	60±0.25	"
WB-F7040	70f7 ^{-0.030 -0.060}	75H7 ^{+0.030 0}	85±0.5	70^{+0.074 0}	40±0.25	75 ^{+0.100 +0.055}
WB-F7070	"	"	"	"	70±0.25	"
WB-F7540	75f7 ^{-0.030 -0.060}	80H7 ^{+0.035 0}	90±0.5	75^{+0.074 0}	40±0.25	80 ^{+0.100 +0.055}
WB-F7570	"	"	"	"	70±0.25	"
WB-F8050	80f7 ^{-0.036 -0.071}	85H7 ^{+0.035 0}	100±0.5	80^{+0.087 0}	50±0.50	85 ^{+0.120 +0.070}
WB-F8080	"	"	"	"	80±0.50	"
WB-F9050	90f7 ^{-0.036 -0.071}	95H7 ^{+0.035 0}	110±0.5	90^{+0.087 0}	50±0.50	95 ^{+0.120 +0.070}
WB-F9090	"	"	"	"	90±0.50	"
WB-F10050	100f7 ^{-0.036 -0.071}	105H7 ^{+0.035 0}	120±0.5	100^{+0.087 0}	50±0.50	105 ^{+0.120 +0.070}
WB-F10060	"	"	"	"	60±0.50	"
WB-F11050	110f7 ^{-0.036 -0.071}	115H7 ^{+0.035 0}	130±0.5	110^{+0.087 0}	50±0.50	115 ^{+0.120 +0.070}
WB-F11060	”	"	"	"	60±0.50	"
WB-F12060	120f7 ^{-0.043 -0.083}	125H7 ^{+0.040 0}	140±0.5	120^{+0.100 0}	60±0.50	125 ^{+0.170 +0.100}
WB-F13060	130f7 ^{-0.043 -0.083}	135H7 ^{+0.040 0}	155±0.5	130^{+0.100 0}	60±0.50	135 ^{+0.170 +0.100}
WB-F13090	"	"	"	"	90±0.50	"
WB-F14060	140f7 ^{-0.043 -0.083}	145H7 ^{+0.040 0}	165±0.5	140^{+0.100 0}	60±0.50	145 ^{+0.170 +0.100}
WB-F14090	"	"	"	"	90±0.50	"
WB-F15060	150f7 ^{-0.043 -0.083}	155H7 ^{+0.040 0}	180±0.5	150^{+0.100 0}	60±0.50	155 ^{+0.170 +0.100}
WB-F15090	"	"	"	"	90±0.50	"
WB-F16060	160f7 ^{-0.043 -0.083}	165H7 ^{+0.040 0}	190±0.5	160^{+0.100 0}	60±0.50	165 ^{+0.170 +0.100}
WB-F16090	"	"	"	"	90±0.50	"
WB-F17060	170f7 ^{-0.043 -0.083}	175H7 ^{+0.040 0}	200±0.5	170^{+0.100 0}	60±0.75	175 ^{+0.170 +0.100}
WB-F17090	"	"	"	"	90±0.75	"
WB-F18090	180f7 ^{-0.043 -0.083}	185H7 ^{+0.046 0}	215±0.5	180^{+0.115 0}	90±0.75	185 ^{+0.210 +0.130}
WB-F19060	190f7 ^{-0.050 -0.096}	195H7 ^{+0.046 0}	225±0.5	190^{+0.115 0}	60±0.75	195 ^{+0.210 +0.130}
WB-F19090	"	"	"	"	90±0.75	"
WB-F20060	200f7 ^{-0.050 -0.096}	205H7 ^{+0.046 0}	235±0.5	200^{+0.115 0}	60±0.75	205 ^{+0.210 +0.130}
WB-F20090	"	"	"	"	90±0.75	"
WB-F22560	225f7 ^{-0.050 -0.096}	230H7 ^{+0.046 0}	260±0.5	225^{+0.115 0}	60±0.75	230 ^{+0.210 +0.130}
WB-F22590	"	"	"	"	90±0.75	"
WB-F25060	250f7 ^{-0.056 -0.108}	255H7 ^{+0.052 0}	290±0.5	250^{+0.130 0}	60±0.75	255 ^{+0.260 +0.170}
WB-F25090	"	"	"	"	90±0.75	"
WB-F26560	265f7 ^{-0.056 -0.108}	270H7 ^{+0.052 0}	305±0.5	265^{+0.130 0}	60±0.75	270 ^{+0.260 +0.170}
WB-F26590	"	"	"	"	90±0.75	"
WB-F28590	285f7 ^{-0.056 -0.108}	290H7 ^{+0.052 0}	325±0.5	285^{+0.130 0}	90±0.75	290 ^{+0.260 +0.170}
WB-F30090	300f7 ^{-0.056 -0.108}	305H7 ^{+0.052 0}	340±0.5	300^{+0.130 0}	90±0.75	305 ^{+0.260 +0.170}
