Home » Products » Metal Bearings» SLiding bearing » DNB-#200P10 10mm Thick Wear Plate

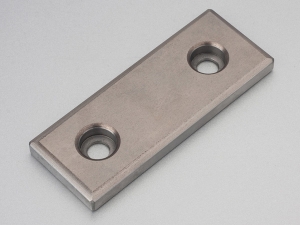

DNB-#200P10

10mm Thick Wear Plate

1. The DNB-#200P10 10mm thick wear plate made by our company is based on a metallic material. Its surface is sintered with an alloy layer which contains a solid lubricant. The wear-resistant self-lubricating plate is subjected to oil-containing treatment.

2. Its solid lubricant is evenly dispersed in an alloy layer, so it can form a solid lubricant film with low shear strength when it starts sliding. It can be firmly attached to the bearing surface without cracking even under ultra high static load.

3. The 10mm thick wear plate not only protects shaft from abrasion, but also allows solid lubricating properties to be permanent. Both its hardness and wear resistance are twice as high as that of ordinary copper bushes.

4. As one of the machine parts, our product has been widely applied in the hydraulic metal processing equipment, tire moulds, hoisting machinery, and the mining machinery, etc. It can be used under conditions of high temperature, high load, low-speed heavy duty, and more.

5. Please choose the part number on basis of thickness, width and length. For instance, the ordering code of the 10mm thick wear plate is DNB-#200P10-2875 under condition of 10mm thickness, 28mm width, and 75mm length.

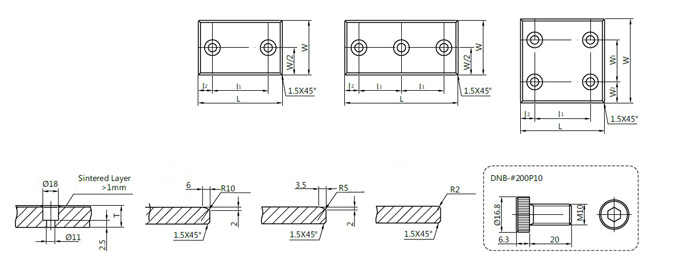

Technical Parameters (Unit: mm)

Parts No. Width Length Thickness Mounting holes Pitch Number of Screw holes Chamfered shape
W Tolerance L Tolerance T Tolerance W1 Tolerance W2 L1 Tolerance L2
#200P10-2875 28 -0.1
-0.3
75 -0.1
-0.3
10 ±0.01 - - - 45 ±0.2 15 2 C
#200P10-28100 100 - - - 50 25
#200P10-28125 125       75 25
#200P10-28150 150 - - - 100 25
#200P10-3875 38 75 - - - 45 15
#200P10-38100 100 - - - 50 25
#200P10-38125 125       75 25
#200P10-38150 150 - - - 100 25
#200P10-4875 48 75 - - - 45 15 B
#200P10-48100 100 - - - 50 25
#200P10-48125 125 - - - 100 25
#200P10-48150 150 - - - 100 25
#200P10-48200 200 - - - 100 50
#200P10-48250 250 - - - 45 25 3
#200P10-7575 75 75 - - - 25 25 2 A
#200P10-75100 100 - - - 50 25
#200P10-75125 125 - - - 75 25
#200P10-75150 150 - - - 100 25
#200P10-75200 200 - - - 150 25
#200P10-75250 250 - - - 100 25 3
#200P10-75300 300 - - - 100 50
#200P10-100100 100 100 50 ±0.2 25 50 25 4
#200P10-100125 125 75 25
#200P10-100150 150 100 25
#200P10-100200 200 150 25
#200P10-100250 250 200 25
#200P10-100300 300 200 50
#200P10-125125 125 125 37.5 75 25
#200P10-125150 150 100 25
#200P10-125200 200 150 25
#200P10-125250 250 200 25
#200P10-125300 300 200 50
#200P10-150150 150 150 100 25 100 25
#200P10-150200 200 150 25
#200P10-150250 250 200 25
